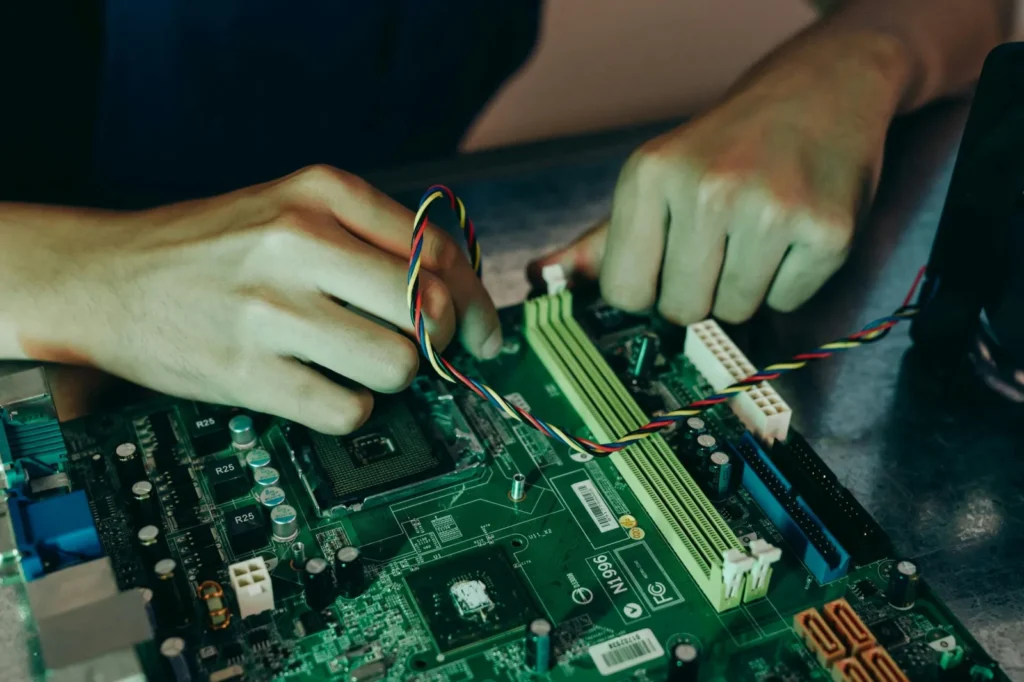

7 Most Common Motherboard Repair Problems and How to Fix Them

The motherboard is the central hub of your computer. It is a complex multilayer circuit board where the CPU, RAM, storage drives, and peripherals unite to create a functional system. When it fails, the symptoms can range from frustrating random crashes to a complete inability to power on.

For many, a dead motherboard signals the end of the road—a costly replacement or a full system upgrade. However, a significant percentage of motherboard failures are not fatal. They are often caused by specific, identifiable, and sometimes fixable component failures.

This guide explores the seven most common motherboard repair scenarios. We will bridge the gap between “throwing it away” and “calling a professional” by offering diagnostic steps and actionable solutions. Disclaimer: Repairing electronics involves risk, including electric shock and permanent damage. If you are uncomfortable with soldering or hardware disassembly, consult a professional.

1. The Infamous Capacitor Plague (Bulging or Leaking Caps)

If you open your computer case and look closely at the motherboard surface, you will see small cylindrical components sticking up. These are capacitors. They act as tiny energy reservoirs, smoothing out voltage fluctuations to ensure the CPU and GPU receive clean power.

One of the most visually obvious motherboard repair issues is capacitor failure, colloquially known as “capacitor plague.”

Symptoms

• System Instability: Random freezes, blue screens of death (BSODs), or unexpected restarts.

• Power Cycling: The computer tries to turn on, fans spin for a second, then it dies, repeating this loop indefinitely.

• Failure to POST: The screen remains black, but the fans spin (if the caps are on the VRM).

• Visual Confirmation: The flat top of the capacitor (which should be perfectly flat) is bulging outward. You might also see brown, crusty residue leaking from the bottom or top vent .

Why This Happens

Capacitors contain a liquid electrolyte. Over time, heat, poor manufacturing, or electrical stress causes this liquid to evaporate or expand. When the internal pressure builds, the top of the can bulges. Once the electrolyte dries up, the capacitor loses its ability to filter electricity, causing “ripple” that confuses the delicate circuitry.

The Fix: Desoldering and Replacement

Difficulty: Expert (Requires soldering)
Tools Needed: Soldering iron, desoldering pump or wick, replacement capacitors (matching uF and voltage), multimeter.

A bulging capacitor is a clear sign of failure, but can it be fixed? Yes, but it requires steady hands .

1. Identify the Value: Look at the side of the capacitor. You will see two key numbers: Capacitance (uF) and Voltage (V) . For example, “2200uF” and “6.3V” are common for VRM filtering . You must replace it with an identical rating. It is okay to use a higher voltage rating (e.g., 10V instead of 6.3V), but never a lower voltage.

2. Remove the Old Cap: Heat the solder joints on the back of the motherboard (or the top if using a desoldering gun) while gently pulling the capacitor out.

3. Clean the Holes: Use a desoldering pump to remove the old solder from the through-holes.

4. Insert the New Cap: Pay attention to Polarity. Motherboards use polarized capacitors. The negative side is marked by a stripe on the capacitor body. Match this stripe with the marked side on the motherboard silk screen.

5. Solder and Clip: Solder the leads on the back, then clip the excess wire.

Expert Tip: When replacing capacitors in a voltage regulator module (VRM), replace all the capacitors in that phase. If one died from heat, the others are likely near death.

2. Dead CMOS Battery: Settings Keep Resetting

The CMOS (Complementary Metal-Oxide-Semiconductor) battery is a small, shiny coin cell, usually a CR2032. It provides power to the small memory chip that stores your BIOS/UEFI settings, including boot order, time, and date.

Symptoms

• Time & Date Resets: Every time you turn on the computer, the clock shows the year 2000 or a manufacturing date.

• “CMOS Checksum Error”: You see this message on boot, requiring you to press F1 to continue .

• Boot Issues: The computer forgets which drive has the operating system, leading to “No Bootable Device” errors.

• BIOS Password Reset: Some users use this as a method to reset forgotten BIOS passwords (usually by removing the battery and draining residual power).

The Fix: Replacement

Difficulty: Beginner
Tools Needed: Small flathead screwdriver or fingernail.

This is the easiest motherboard repair task on the list and solves a surprising number of “weird” boot errors.

1. Power Down: Shut down the PC and unplug the power supply.

2. Locate the Battery: Look for a flat, silver disc about the size of a nickel.

3. Release the Clip: Press the metal retention clip on the side of the battery holder. The battery should pop up.

4. Install the New One: Push the new CR2032 battery into place. Ensure the “+” (positive) side is facing up (though the holder usually forces correct orientation).

5. Enter BIOS: Upon reboot, you may need to press Del or F2 to enter BIOS and re-save your settings (like enabling XMP for RAM or setting the boot order).

Did you know? A motherboard battery typically lasts 3 to 5 years. If you buy a used motherboard, always replace the CMOS battery immediately .

3. Burnt MOSFETs and Power Surge Damage

When a lightning strike or a faulty power supply sends a voltage spike through your system, the first line of defense is often the Voltage Regulator Module (VRM). The MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are the small, black square chips surrounding the CPU socket. They switch power on and off thousands of times a second to convert 12V from the power supply into 1.2V for the CPU.

Symptoms

• Dead System: The computer shows absolutely no signs of life (no fans, no lights).

• Burning Smell: A distinct acrid odor of burnt electronics.

• Visible Damage: A small crater, scorch mark, or blackened chip on the motherboard .

The Fix: Component-Level Soldering

Difficulty: Expert
Tools Needed: Hot air rework station, tweezers, multimeter, soldering iron.

This is advanced motherboard repair, often requiring a schematic.

1. Identify the Short: Use a multimeter in continuity mode. Touch the positive probe to the CPU 12V rail (the 8-pin connector) and the negative to ground. If it beeps instantly, you have a short to ground—likely a dead MOSFET .

2. Locate the Faulty Chip: Visually inspect the MOSFETs. Often the shorted one will have a tiny pinhole or discoloration.

3. Remove the Bad Chip: Apply flux around the MOSFET. Use a hot air gun (around 400°C) to heat the chip until the solder melts, then lift it off with tweezers.

4. Replace: Align a new MOSFET (identical part number) onto the pads. Heat it again until it settles into place.

5. Check Resistance: Before powering on, test resistance again. It should be high (hundreds of Ohms), not zero.

Warning: If a CPU VRM MOSFET fails short, it likely sent 12V straight to your CPU. Your CPU might be dead as well .

4. Physical Damage: Broken Traces and Cracked PCBs

Modern motherboards have anywhere from 4 to 10 layers of copper traces sandwiched between fiberglass. A crack in the board—usually from dropping a heavy heatsink on it, overtightening screws, or flexing the board during installation—can sever these microscopic highways of data.

Symptoms

• Intermittent Functionality: The motherboard works if you press down on a specific corner, but fails if you let go.

• Dead Ports: USB headers or audio jacks stop working because the trace connecting them to the chipset is cut.

• No Power: A cracked trace in the power-on circuit (PS_ON) will prevent the board from ever waking up.

The Fix: Trace Repair (Bodging)

Difficulty: Medium to Hard
Tools Needed: Exacto knife, fine-gauge wire (Kynar or wire-wrap wire), soldering iron with a fine tip, multimeter, conductive epoxy (optional).

Repairing traces is a classic motherboard repair task that requires a microscope for modern boards.

1. Expose the Trace: Use an Exacto knife to gently scrape away the green solder mask on both sides of the crack until you see shiny copper .

2. Tin the Pads: Apply a tiny amount of solder to the exposed copper.

3. Route the Wire: Cut a piece of thin insulated wire. Strip the ends.

4. Solder the Bridge: Solder one end of the wire to one side of the break, and the other end to the other side. This bypasses the crack .

5. Secure the Wire: Use a drop of hot glue or epoxy to hold the wire down to the board so it doesn’t get snagged and ripped off .

![Motherboard Trace Repair]

Figure: Using a jumper wire to bypass a damaged PCB trace.

5. RAM Slot and DIMM Failures

Memory issues are often blamed on the RAM stick itself, but the motherboard slots are frequent culprits. Dust, bent pins, or a failed memory channel can cause havoc.

Symptoms

• Beep Codes: On older boards, a specific series of beeps (e.g., long, repeating beeps) indicates no RAM detected.

• Boot Loops: The system tries to start, fails, and restarts repeatedly.

• Missing RAM: Windows or BIOS shows “8.00 GB (3.87 GB usable),” indicating a single stick or channel isn’t working.

• Diagnostic LEDs: Modern high-end boards have LED indicators for “DRAM” that stay lit red.

The Fix: Cleaning, Reseating, and Testing

Difficulty: Beginner (Cleaning) / Moderate (Socket Repair)
Tools Needed: Can of compressed air, soft brush, eraser, BIOS/UEFI access.

1. Clean the Slot: Dust bunnies love RAM slots. Use compressed air to blow out the slot vigorously .

2. Clean the Contacts: RAM sticks can oxidize. Rub the gold contacts on the bottom of the RAM stick with a standard pencil eraser. Wipe away the debris with a cloth.

3. The Isolation Test:

   • If you have 2 sticks, try booting with only Stick A in Slot 1.

   • Then, try only Stick A in Slot 2.

   • Then, repeat with Stick B.
     This tells you if the slot is dead or the stick is dead.

4. The “CPU Tightening” Fix: For AMD AM4/AM5 or Intel LGA 1700 boards, sometimes uneven CPU cooler pressure bends the board slightly, causing poor pin contact between the CPU and the memory controller. Loosening the cooler by a quarter-turn and retightening evenly can fix “missing” RAM channels.

6. Corrupted BIOS and Failed Flash

The BIOS (Basic Input/Output System) is the firmware that initializes hardware before the operating system loads. If the BIOS code becomes corrupted, the motherboard becomes a brick—until you reprogram it.

Symptoms

• Dead Board: The CPU fan spins, but absolutely nothing appears on screen. No beeps, no POST.

• Boot Loop after Update: The board crashed during a BIOS update, and now it won’t boot.

• Checksum Errors: The BIOS detects its own data is incorrect .

The Fix: USB BIOS Flashback

Difficulty: Beginner (If supported) / Hard (If using an SPI programmer)

Most mid-range and high-end motherboards manufactured after 2018 feature USB BIOS Flashback (names vary: Q-Flash Plus, BIOS Flash Button).

1. Prepare the USB: Use another computer to format a USB drive to FAT32.

2. Rename the File: Download the latest BIOS from the manufacturer’s website. Rename the file to whatever the manual specifies (e.g., MSI.ROM or GIGABYTE.bin).

3. Insert and Press: Put the USB into the specific “BIOS” USB port on the back I/O panel. Press the Flashback button (usually without a CPU or RAM installed).

4. Wait: The light will blink for 3-5 minutes. Once it stops, the BIOS is recovered.

If your board lacks Flashback:
You may need a dedicated SPI programmer (like CH341A) and clip leads to directly write the BIOS chip. This involves clamping a connector onto the BIOS chip while the motherboard is powered by standby voltage .

Expert Note: After a motherboard replacement or major BIOS change, if you are using BitLocker (Windows drive encryption), have your recovery key ready. Changing the firmware TPM (Trusted Platform Module) will trigger BitLocker recovery mode .

7. Short Circuits (Standoffs and Solder Splashes)

A “short circuit” happens when electricity takes an unintended path. On a motherboard, this often leads to immediate power-off to protect the components (Over Current Protection).

Symptoms

• The “Twitch and Die”: You hit the power button. The fans spin for half a second, then everything stops. The PSU clicks.

• Burning Smell: If the short is severe, a trace may vaporize.

• No POST: The board has power (standby LED is on), but won’t turn on.

The Fix: The Breadboard Method

Difficulty: Moderate
Tools Needed: Screwdriver, cardboard box or non-conductive surface.

The most common cause of a short is an extra brass standoff.

1. Remove the Motherboard: Take the board completely out of the case.

2. Test on a Box: Place the motherboard on a cardboard box (which is non-conductive).

3. Minimal Boot: Install only the CPU, one stick of RAM, and the power supply.

4. Jump the Power Switch: Touch the two “Power SW” pins on the front panel header with a screwdriver tip.

   • If the board stays on: The short is in your case. Check for extra standoffs touching the back of the board where there are no screw holes.

   • If the board still won’t stay on: Inspect the underside of the motherboard. Look for a stray screw rolling around or a blob of solder bridging two traces .

Prevention and Diagnostic Tools

Before you perform any motherboard repair, you must diagnose correctly. Guessing leads to wasted money.

Essential Tools for the Aspiring Technician

• Multimeter ($15-$50): Absolutely mandatory. You can test the CMOS battery voltage (should be above 2.8V) and check for shorts without powering the board .

• Power Supply Tester ($10-$20): Quickly tells you if the PSU is the real culprit before you blame the board .

• POST Card: A small card that plugs into a PCIe slot. It displays hexadecimal error codes that tell you exactly where the POST process is hanging (e.g., Code 55 = Memory not installed).

• Magnifying Glass or Microscope: Essential for spotting hairline cracks or tiny solder bridges.

When to Replace vs. Repair

Not every motherboard is worth saving. The economics of motherboard repair have changed.

External Resources and Guides

For those looking to dive deeper into advanced diagnostics, several excellent resources are available online.

• Community Forums: Websites like Reddit (r/AskElectronics) and specialized forums like Badcaps.net are dedicated specifically to motherboard repair and component-level troubleshooting. You can find schematics and advice from professional technicians .

• Professional Certification: Pearson IT Certification and CompTIA (A+) provide structured learning paths. Their materials often include cram quizzes and detailed troubleshooting steps for POST issues and power failures .

• Manufacturer Manuals: Supermicro and other enterprise hardware vendors publish extensive troubleshooting guides. These are excellent for learning professional “minimum configuration” testing methods to isolate faulty hardware .

Conclusion

Navigating the world of motherboard repair can feel intimidating. The dense circuitry and tiny components look fragile, and indeed, they are. However, as we have explored, a significant portion of failures are mechanical or chemical rather than logical.

From the simple replacement of a CMOS battery that keeps forgetting the time, to the surgical removal of a bulging capacitor, many fixes are accessible to a patient hobbyist. The key takeaway is systematic diagnosis. Do not assume the motherboard is dead because the computer won’t turn on. Check the power supply, check for shorts, and listen for beep codes.

While soldering on a multilayer board is high-risk, cleaning, reseating, and basic BIOS recovery are high-reward skills that can save you hundreds of dollars. By understanding these seven common failure points, you shift from being a passive consumer of electronics to an active maintainer.

Actionable Takeaways:

1. Start with the Battery: Always replace the CMOS battery when troubleshooting date/time resets or boot errors.

2. Look before you leap: Visually inspect for bulging capacitors or burnt spots before plugging anything in.

3. Isolate the problem: Use the “breadboard” method to remove the case and unnecessary peripherals from the equation.

4. Know your limits: If a repair requires a hot air station and you have never soldered before, practice on an old broken card first or send the board to a professional.

Treat your hardware with respect, keep your workspace organized, and you might be surprised at how often you can bring a “dead” PC back to life.

Frequently Asked Questions (FAQ)

Q: Is it worth repairing a cheap motherboard?
A: Generally, no. If a budget motherboard (sub 60)hasfailedduetoablownVRMoradeadchipset,thecostofatechnician′slabor(60)hasfailedduetoablownVRMoradeadchipset,thecostofatechnician′slabor(50-$100)exceedsthereplacementcost.However,ifitisahigh-endmotherboard(over$250) or a rare legacy board, repair is cost-effective.

Q: Can a dead motherboard kill other components?
A: Yes. A failing power regulator (VRM) can send excessive voltage (overvoltage) to the CPU or RAM, frying them instantly. If you suspect a motherboard issue, remove valuable components (GPU, drives) immediately to test them in a known working system.

Q: How do I fix bent pins in the CPU socket?
A: This requires extreme patience. Using a mechanical pencil (without lead) or a fine sewing needle, gently lift the bent pin back into alignment with the surrounding rows. Do not bend it too much or it will snap off. Snapped pins often mean the motherboard is permanently damaged unless you are a soldering expert.

Q: My motherboard turns on but there is no display. Is it the BIOS?
A: Possibly. First, rule out the GPU and RAM. If the board is stuck in a “boot loop” (restarting every 30 seconds) with no display, clearing the CMOS or using BIOS Flashback is a great next step.
