In the fast-evolving world of technology, innovation drives performance, efficiency, and sustainability. One such groundbreaking advancement in the LED and semiconductor industries is Full Flipped Chip COB (Chip-on-Board) technology. As consumer demand for high-performance, energy-efficient devices rises, Full Flipped Chip COB stands out as a transformative solution, delivering superior results in lighting, displays, and beyond.
This article delves into the concept of Full Flipped Chip COB, its applications, benefits, and why it is shaping the future of technology.
What is Full Flipped Chip COB Technology?
Flipped Chip COB (Chip-on-Board) technology represents an advanced method of integrating LEDs or semiconductor chips into a module. Unlike traditional LED configurations, where the chip is mounted facing upward, the flipped chip is mounted upside down. This configuration allows direct contact between the chip and the substrate, enhancing heat dissipation, electrical performance, and light efficiency.
When combined with COB technology, multiple flipped chips are bonded onto a single board. This densely packed arrangement offers uniform light output, improved reliability, and reduced production costs.
The “full flipped” aspect indicates a complete reliance on flipped chip architecture across the module, further refining performance and minimizing traditional manufacturing limitations.
How Full Flipped Chip COB Technology Works
- Chip Mounting:
Chips are mounted face-down on the substrate, ensuring a direct thermal path. This contrasts with traditional chips that rely on additional soldering and wiring. - Thermal Management:
The flipped configuration ensures that heat is efficiently transferred away from the chip through the substrate. This reduces overheating and extends the lifespan of the module. - Compact Design:
Multiple flipped chips are integrated onto a single board, optimizing space and eliminating the need for individual packaging for each chip. - Encapsulation:
To protect the chips and enhance light output, a phosphor layer or protective coating is applied. This layer contributes to uniform light distribution and color consistency.
Advantages of Full Flipped Chip COB Technology
1. Enhanced Heat Dissipation
Heat management is a critical aspect of LED and semiconductor performance. Traditional chip designs often face overheating issues, leading to reduced efficiency and shorter lifespans. Full flipped chip COB technology excels in heat dissipation due to the direct thermal path created by the flipped design. This capability is particularly vital for high-power applications such as industrial lighting and automotive headlamps.
2. Improved Light Efficiency
The compact arrangement of chips in COB modules allows for higher luminous flux while reducing energy consumption. The absence of wire bonding in flipped chip designs eliminates light blockage, ensuring maximum light output and improved optical efficiency.
3. Greater Reliability
Flipped chip COB modules exhibit higher resistance to thermal and mechanical stress. This durability results from the robust bonding between the chip and substrate, making them ideal for demanding environments like outdoor lighting or high-speed electronics.
4. Cost-Effectiveness
Full flipped chip COB technology streamlines production by reducing the need for individual packaging and wiring. The simplified assembly process translates to lower manufacturing costs without compromising quality.
5. Compact and Aesthetic Design
The dense arrangement of flipped chips on a single board enables compact and lightweight designs. This is particularly beneficial for modern devices requiring sleek aesthetics, such as ultra-thin displays and portable gadgets.
Applications of Full Flipped Chip COB Technology
1. LED Lighting
The most prominent application of Full Flipped Chip COB technology lies in the lighting industry. Its ability to deliver high luminous efficacy with minimal energy consumption makes it ideal for:
- Industrial and Commercial Lighting: High-output lights for factories, warehouses, and offices.
- Automotive Headlamps: Durable and reliable lights for vehicles that can withstand extreme conditions.
- Street and Outdoor Lighting: Bright, efficient, and long-lasting solutions for public spaces.

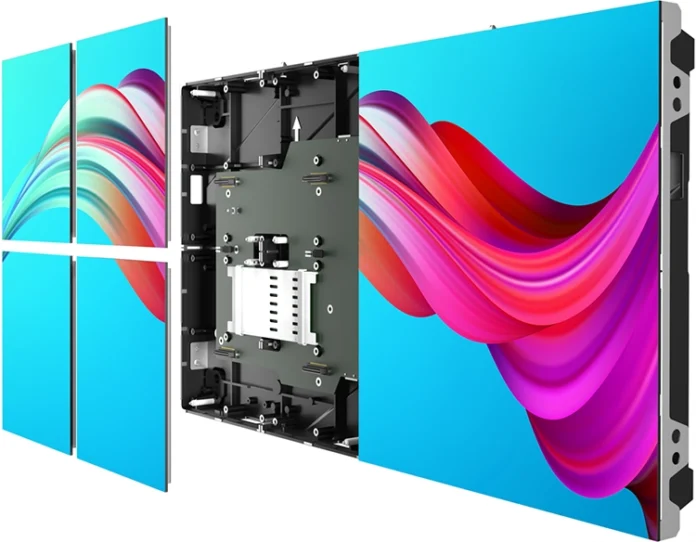

2. Displays and Screens
In digital displays and televisions, Full Flipped Chip COB technology contributes to enhanced brightness, color uniformity, and reduced power consumption. It’s particularly advantageous in high-definition displays where precision and reliability are paramount.
3. Wearable Devices
The compact design and energy efficiency of this technology make it an excellent fit for wearable electronics like smartwatches, fitness trackers, and augmented reality (AR) glasses. These devices require small, lightweight components that can deliver high performance over extended periods.
4. Medical Equipment
In medical imaging and surgical lighting, precision and reliability are critical. Full flipped chip COB technology ensures consistent light output and long-lasting performance, making it invaluable in these applications.
5. Semiconductor Industry
Beyond LEDs, the principles of flipped chip COB technology are being adapted for semiconductor applications, such as microprocessors and high-speed transistors. The efficient heat management and compact design are critical for advancing computing and communication technologies.
Challenges and Considerations
While Full Flipped Chip COB technology offers numerous benefits, it is not without challenges. Manufacturers must address the following issues:
- Production Complexity: Implementing flipped chip designs requires precision and advanced manufacturing techniques, which can pose challenges for smaller manufacturers.
- Cost of Initial Setup: While production costs are lower in the long term, the initial investment in equipment and training for flipped chip COB production can be substantial.
- Thermal Stress Management: While heat dissipation is improved, thermal stress can still affect performance if not properly managed. Advanced materials and design techniques are essential to mitigate this risk.
Ongoing research and development in the field are addressing these challenges, making Full Flipped Chip COB technology increasingly accessible to a broader range of industries.
Future of Full Flipped Chip COB Technology
The adoption of Full Flipped Chip COB technology is expected to grow exponentially in the coming years, driven by advancements in materials science, manufacturing processes, and consumer demand for efficient, high-performance solutions. Here’s what the future holds:
- Integration with Smart Systems:
Full flipped chip COB modules are being integrated with IoT-enabled systems, enabling smarter lighting and device management. Imagine streetlights that adjust brightness based on real-time conditions or displays that optimize settings for user preferences. - Sustainability Initiatives:
With an increasing focus on sustainability, Full Flipped Chip COB technology is contributing to eco-friendly solutions by reducing energy consumption and extending product lifespans. This aligns with global goals for reducing carbon footprints. - Miniaturization Trends:
As devices become smaller and more compact, Full Flipped Chip COB technology will play a crucial role in meeting design and performance demands without compromising efficiency. - Broader Industry Applications:
Beyond lighting and displays, this technology will likely find applications in emerging fields such as quantum computing, advanced sensors, and renewable energy systems.
Conclusion
Full Flipped Chip COB technology is a game-changer in the LED and semiconductor industries, offering unparalleled advantages in performance, efficiency, and design. Its applications span a wide range of industries, from lighting and displays to medical devices and wearable tech.
While challenges exist, the continued innovation and investment in this field promise a bright future. For manufacturers, adopting Full Flipped Chip COB technology isn’t just an opportunity—it’s a necessity to stay ahead in a competitive and rapidly evolving market. As consumers, we can look forward to a world where devices are smarter, brighter, and more efficient than ever before.
In the era of technological breakthroughs, Full Flipped Chip COB stands out as a shining example of what’s possible when innovation meets purpose.
